S1E Lateral Lining System

Lateral Lining System Lining Drums

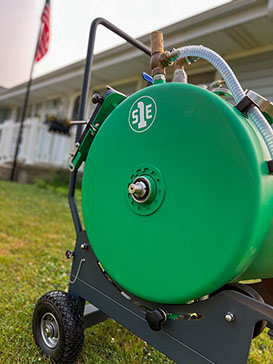

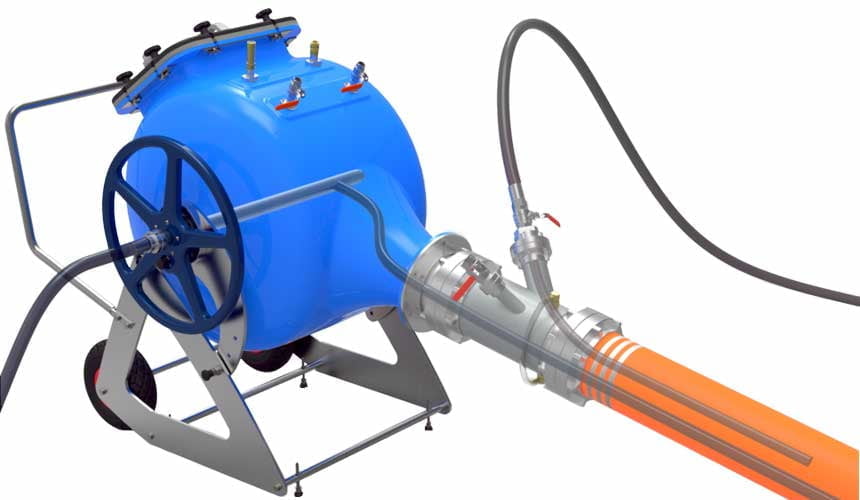

Source One Environmental (S1E) offers inversion drums in various sizes depending on the use in the pipe diameters to be renovated. Thus easy, trenchless renovation via cleaning holes, manholes and all known pipe openings is possible. All S1E inversion drums are made of composite material or stainless steel in combination with high-quality container steel and guarantee high service life. Drums are suitable for hot and cold setting with water or air and are supplied with hot water circulation connections as standard.

Lining Drums
Lining Drums Specifications

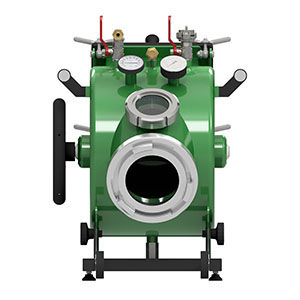

Alpha
Alpha Lining Drum

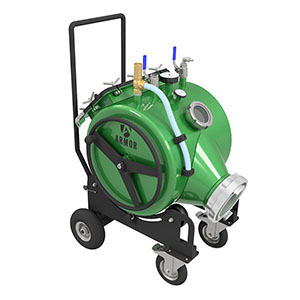

600
600 Lining Drum
700
700 Lining Drum

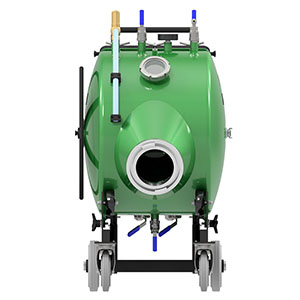

950
950 Lining Drum
Weight 61 lbs/28 kg 83 lbs/38 kg 110 lbs/50 kg 243 lbs/110 kg
Dimensions (W x L x H) 2 x 2.5 x 2.7Ft. 1.9 x 3.3 x 3.2Ft. 2.5 x 4.4 x 3.7Ft. 41.5 x 60.2 x 57.9Ft.
Window Dimensions 8 x 8.5 in 8 x 8.5 in 14 x 17 in 15.5 x 23 in
Max Lengths of liner 4in/4mm = 52.5 ft.
5in/4mm = 46 ft.
6in/4mm – 41 ft.
8in/4mm=26 ft.
100/4mm = 131 ft.
125/4mm = 164 ft.
150/4mm = 82 ft.
200/4 mm = 60 ft.
4 in/4mm = 180 ft.
5 in/4mm = 164 ft.
6 in/4mm = 148 ft.
8 in/4mm = 131 ft.
4 in/4mm = 492 ft.
5 in/4mm = 410 ft.
6 in/4mm = 328 ft.
8 in/4mm = 262 ft.
12 in/4mm = 164 ft.
Nozzle Connections 6” Storz 6” Storz 6” Storz 8” Storz
Drum Diameter 1.3 ft. 2 ft. 2.3 ft. 3 ft.
Max Pressure 13 psi 13 psi 13 psi 13 psi
Inversion/CureMethod Air, Steam or Hot Water Air, Steam or Hot Water Air, Steam or Hot Water Air, Steam or Hot Water
Max. Temperature 212 F 212 F 212 F 212 F
