Mid-Sized Push Camera SystemS1E-MS11-NG2 Powered by Mytana

Get big performance from one grab-and-go package. This lightweight yet durable one-piece inspection system delivers exceptionally clear footage from 3” to 6” lines *.

Record to internal memory or USB drive, or stream wirelessly to your mobile device. 512Hz transmitter built-in.

  • Integrated components: Daylight-readable monitor, control panel and push rod all in one bundle.
  • Microphone: Add voice overlay to footage.
  • Inspect 1½" to 3" lines *: Swap in a Mid-Sized-camera head, included in the optional MS11+ Combo Kit.
  • Factory and field tested: System holds up in harsh operating environments.
S1E Mid-Sized Push Camera System powered by MyTana

The flexibility of the S1E-MS11-NG2 Sewer Inspection System makes it suitable for indoor or outdoor jobs. Your purchase always includes factory-direct support.

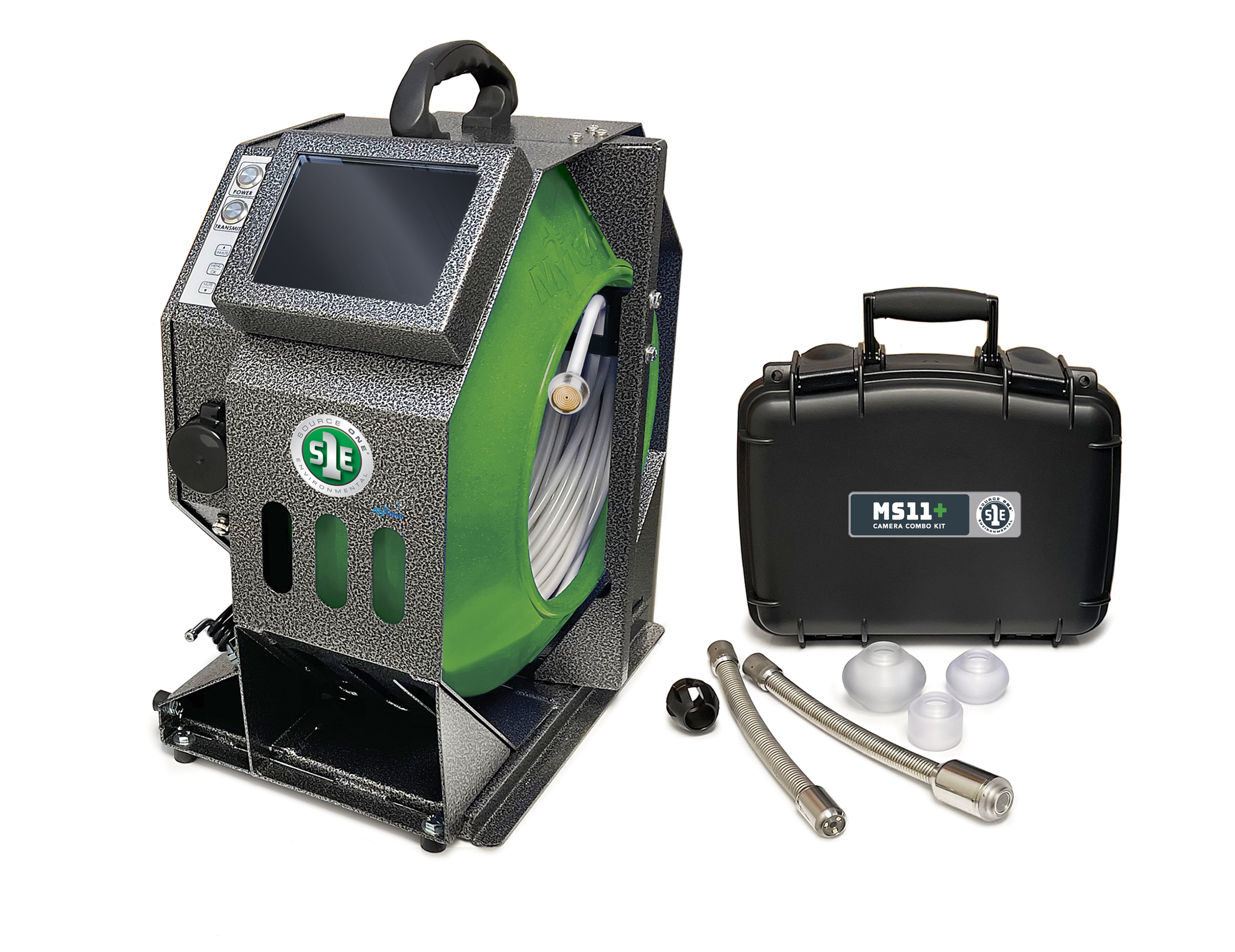

MS11+ Combo Kit

Specs Drawing - S1E Mid-Sized Push Camera powered by MyTana

Features

Includes an interchangeable 1 1/16" mini camera head to inspect 1 1/2"-3" lines with the S1E-MS11-NG2 push-rod.

  • Camera
    • 1 1/16" dia., fixed-position
    • Stainless steel with flexible neck
    • Screw-on/off connection to push rod
    • Adjustable LED lights
    • 512Hz transmitter built-in
  • Kit includes
    • Mini snoball guide for protection and centering
    • 4" Ice Ball for mid-size head
    • Dielectric grease
  • Transport Case
    • Stores smaller camera head and ALL items shipped with S1E-MS11-NG2

Features & Specs

System

  • Work
    • Inspects 3” - 6” lines
    • Add the Combo Kit (see below) for 1½” - 3” lines
  • Recording
    • USB, internal storage, wireless streaming
  • Integrated Frame
    • Monitor, controls and push-rod all packaged in one convenient bundle
  • Power
    • Household power – 110v / 15A
    • Rechargeable battery – recharge by plugging system in to wall outlet

Reel Frame

  • Material
    • Powder-coated aluminum
  • Weight
    • 45 lbs (200’ push rod)
  • Push Rod
    • 150' or 200'
    • Durable, .36" dia.
    • Smooth, low-friction coat reduces catching
  • Operation
    • Vertical and horizonal
  • Size
    • 13"W × 20”L × 21”H
S1E Mid-Sized Push Camera System Dimensions

Camera head

  • Construction
    • Stainless steel, flexible neck
    • Screw-on/off connection to push rod
  • Features
    • Color, self-leveling
    • 512Hz transmitter/sonde built in
    • Adjustable LED lights (adjust on control box)
  • Size
    • 1½" dia. – suitable for 3” - 6“ lines
  • Protection
    • Polycarbonate “Ice Balls” guide, center and protect

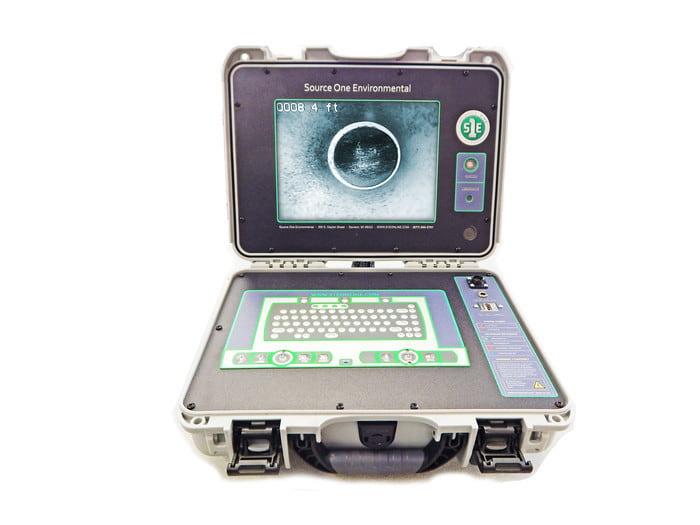

Monitor / Control Box

  • Monitor
    • 5.25” × 4” (6.5” diagonal) – daylight readable
    • Digital footage counter displayed
    • Title and text overlays on screen and recording – customizable w/USB keyboard (not included)
    • File management display
    • NTSC video format
  • Controls
    • Water resistant, stainless-steel buttons for power, sonde control, footage counter reset
    • Rheostat control for camera head LEDs
    • Water resistant buttons for recording and working with files
  • Additional
    • 64GB internal memory drive
    • Dual USB ports
    • Microphone

S1E-MS11-NG2 Includes

  • 32GB USB removable drive
  • Router for WiFi streaming and recording
  • 3 sizes of Ice Ball protective guides, field interchangeable
  • Power cord
  • Complete factory-direct support
