PipePatch Lateral Seal Create a 360° or top hat CIPP tee and wye lateral connection from the main

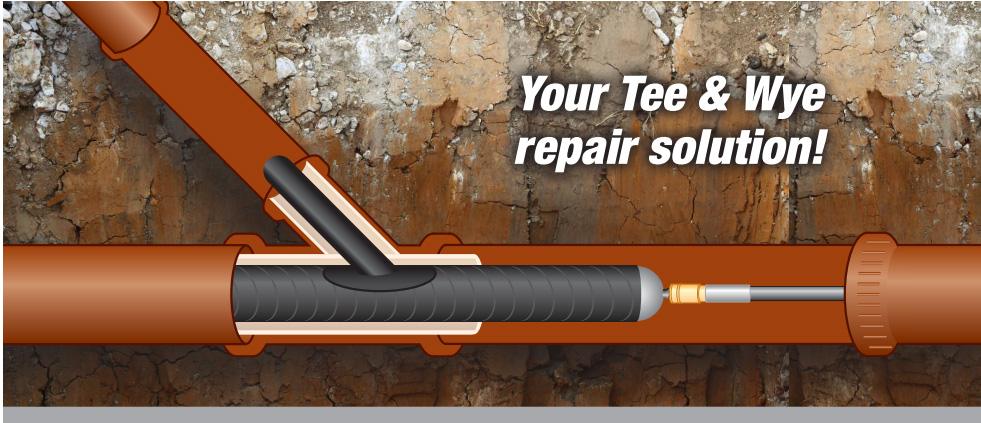

The PipePatch Lateral Seal system creates a 360° or top hat CIPP lateral connection installed from the main during live flow using the nearest manhole without needing access to the homeowners property. Designed with non-shrinking components proven effective and longlasting in the most aggressive sewer conditions.
PipePatch Lateral Seal can be used with PVC or CIPP liners, as well as mechanically anchors and bonds to concrete, PVC or vitrified house service lines. Once installed, the system forms a smooth transition with the liner or pipe, leading a minimal reduction in cross sectional areas. The system can be used in a wide range of junction configurations and is designed to extend 12” into the lateral.
Benefits
- Protects against infiltration and exfiltration
- Seals pipeline and the service line
- Compatible with PVC liners and bonds with concrete, PVC and vitrified clay service line
- Short cure-time and easy installation
- Available in tee and wye configurations for 360° or top hat
- Does not disrupt service
Technical Specifications
- Trenchless point repair technology
- Ambient cure time
- 8-12” mainline and 4”-6” lateral line 360°
- Pre-packaged kitted system
- Patented design
- Installation methods include both a Manual
- Installation System and Robot Installation System
- Powered by Schwalm USA
PipePatch Lateral Seal Equipment
| Part No. | Description |
|---|---|
| FPP-PACK-TH4 | 4” Schwalm rubber top hat |
| FPP-PACK-TH6 | 6” Schwalm rubber top hat |
| FPP-PACK-TY-6 | 6” Non-flow-fhrough Schwalm packer |
| FPP-PACK-TY-7 | 7” Non-flow-through Schwalm packer |
| FPP-PACK-TY-8 | 8” Non-flow-through Schwalm packer |
| FPP-PACK-TY-8FT | 8” Flow-through Schwalm packer |
| FPP-PACK-TY-10-12FT | 10”-12” Flow-through Schwalm packer |
| Part No. | Description |
|---|---|
| FPP6X4TEE | 4” Schwalm rubber top hat |
| FPP-6X6TEE | 6” Schwalm rubber top hat |
| FPP-8X4TEE | 6” Non-flow-fhrough Schwalm packer |
| FPP-8X6TEE | 7” Non-flow-through Schwalm packer |
| FPP-10X4TEE | 8” Non-flow-through Schwalm packer |
| FPP-10X6TEE | 8” Flow-through Schwalm packer |
| FPP-12X4TEE | 10”-12” Flow-through Schwalm packer |
| FPP-12X6TEE | 12” x 6” Full Loop Tee Kit |
| Part No. | Description |
|---|---|
| FPP-6X4WYE | 6” x 4” Full Loop Wye Kit |
| FPP-6X6WYE | 6” x 6” Full Loop Wye Kit |
| FPP-8X4WYE | 8” x 4” Full Loop Wye Kit |
| FPP-8X6WYE | 8” x 6” Full Loop Wye Kit |
| FPP-10X4WYE | 10” x 4 Full Loop Wye Kit |
| FPP-10X6WYE | 10” x 6” Full Loop Wye Kit |
| FPP-12X4WYE | 12” x 4” Full Loop Wye Kit |
| FPP-12X6WYE | 12” x 6” Full Loop Wye Kit |
| Part No. | Description |
|---|---|
| FPP-4T-TH | 4” Tee Top Hat Kit |
| FPP-5T-TH | 5” Tee Top Hat Kit |
| FPP-6T-TH | 6” Tee Top Hat Kit |
| Part No. | Description |
|---|---|
| FPP-4Y-TH | 4” Wye Top Hat Kit |
| FPP-5Y-TH | 5” Wye Top Hat Kit |
| FPP-6Y-TH | 6” Wye Top Hat Kit |
| Part No. | Description |
|---|---|
| FPP-REG-LAT | Regulator For Schwalm System |
| FPP-RESINGUN | Resin Gun For Schwalm System |
| FPP-AIRHOSE150 | 150’ Air Hose For Schwalm Packer |
| FPP-PUSHROD-P | Schwalm Pushrod-Puck Connection |
| FPP-PUSHROD-TY | Schwalm 5’ Steel Push Rod |
| Part No. | Description |
|---|---|
| I-TYCABLE | 100’ Coax Cable |
| I-TYCAMSYSTEM | Manual System Camera |
| Cutter System | Schwalm Robotic Cutter |
For more information on the Schwalm Robotic
Cutter, please contact S1E at (877) 450-3701
