Pillow Repair System

Large Diameter Point Repairs

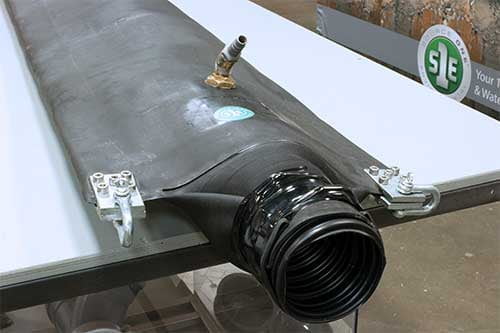

The PipePatch Pillow system enables large diameter CIPP rehabilitation repairs, without removing/excavating any part of the manhole or catch basin. The Pillow is extremely flexible, allowing the installer the ability to complete repairs through most manholes and pipes up to 72". Ideal for storm and sewer rehabilitation such as Department of Transportation drains, railway culverts and interceptors.

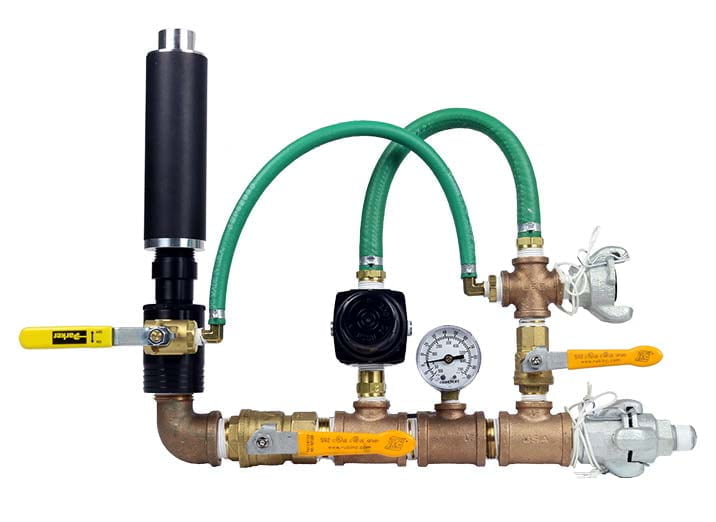

Pillow Repair System Regulator

Pillow Repair System Regulator

  • Reduces deflation time by 60%
  • Combination pressure and vacuum gauge
  • Integrated fast fill valve bypasses regulator to reduce inflation time
PipePlug Lateral Termination

Technical Data

  • Resistance to 63+ chemicals and oils
  • Non-flammable, non-hazardous, cures in the presence of water
  • Structural properties exceed requirements of ASTM F 1216
  • Average tensile strength: 24, 500 psi
  • Average flexural strength: 27,500 psi
  • Average flexural modulus: 1, 345,000 psi

Application Advantages

  • Available in 15"-24", 30"-36", 42"-48", & 60"-72" pipe
  • Flexibile for manuvering through conditions
  • Easy navigation within pipe
  • Eliminates the need for costly and disruptive excavations
  • Creates a structural repair
  • Fast cure-time
  • Safe for storm and sewer systems
  • 50 year repair life guaranteed
  • Odorless and ideal for working in confined spaces
