Pipe Trekker

The world’s first and only fully battery-operated, portable pipe crawler to move quickly and easily to even the most remote manholes.

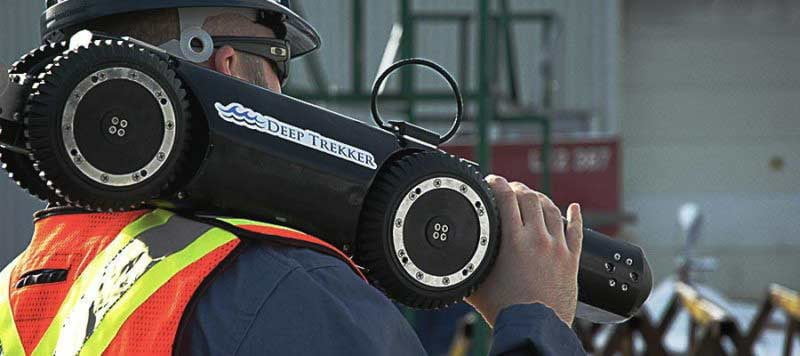

Pipe Trekker delivers easy-to-use, reliable and robust pipe crawlers which can be either completely one-man portable or truck-mounted.

Equip your pickup, vac truck, or even ATV with a pipe crawler. Give your team a flexible option to get eyes in the pipe. The battery-powered A-200 equipped with a high definition PTZ (pan, tilt, zoom) camera is the easiest to use and most  portable pipe crawler on the planet.

With the possibilities of advanced sensor integrations, such  as sonar and lasers, our adaptable design enables true flexibility without compromising performance.

Pipe Trekker Camera Systems
Part No. Description
PT-10802 Add PTZ 1080P IP CAMERA W/ LASER SCALERS - 10x Optical Zoom 1080p, Continuous pan with LED Lights and..Laser Scalers..
PT-10803

Add ELEVATING ARM & AUXILIARY LIGHTS -Centers in pipes from 12" (300 mm) to 36" (914 mm) -

PT-10807-4 Add WHEEL KIT FOR 10" (250 mm) PIPE - Four rubber wheels, rims and hardware
PT-10808-4 Add WHEEL KIT FOR 12" (300 mm) PIPE- Four rubber wheels, rims and hardware
PT-10819-4 Add SPACER KIT FOR WHEELS -Adds 3.0" (76 mm) to width for increased stability
PT-10900 Add TERMINATION KIT
PT-10900-5 Add TERMINATION KIT 5 PACK
PT-10970 Add REAR FACING CAMERA W/ LIGHTS -1080p IP Camera with LED Lights
PT-11141 Add SERVICE KIT - Includes one termination kit
PT-11142 Add 1 Year Extended Warranty (2 years total)
PT-11177 Very Light Weight Carriable. 200M of Tether. Compatible with..BRIDGE Controller Only. No Hybrid Power. Comes with Case
PT-11178-U Upgrade MANUAL REEL TO 310M-Increased Drum Capacity. 310M of Tether
PT-20564 Add AUTOMATIC REEL & HYBRID POWER 310M-Carted on Wheels. 310M of Tether. Compatible with BRIDGE..Controller or Tablet Controller. Hybrid Power Built in. Comes with Case
PT-6722-C Add 7" LCD CONTROLLER -Weatherized controller with SD card, USB, HDMI and Ethernet..port
PT-A-150S A-150 Pipe Crawler System..1080p Pan/Tilt Camera..Elevating Arm..LED Floodlights..200m (650') Tether..Counter Reel..7" LCD Rugged Handheld Controller..Bridge Software..Rubber Wheel Kit for 6" Pipe..Rubber Wheel Kit for 8" Pipe..512 mHz Sonde
PT-A-150X A-150X Pipe Crawler System..1080p Pan/Tilt Camera..Elevating Arm..LED Floodlights..300M Tether (1000') ..Powered Counter Reel With DIrect Power option..10" Tablet Controller ..Pipe Trekker Control App..Rubber Wheel Kit for 6" Pipe..Rubber Wheel Kit
PT-A-200-BASE Must be Selected for Custom Packages. Crawler Body with..Batteries, 512 mHz Sonde, 8" Rubber Wheels, Lifting Kit, Port..Caps, Charger, Carry Case
PT-A-200S Base system, PTZ 1080p IP Camera, Elevating Arm, Aux Lights,..200M Manual Tether Reel, 7" LCD Hand Controller with..Recording, 10" and 12" Pipe Wheels
PT-A-200X Base system,
PT-CARBIDE-WK Add Carbide wheel kit for 8" (200 mm) Pipe - Four carbide grit wheels and hardware
PT-TOUCHSCREEN Add 10" Touch Screen Tablet Controller
Deep Trekker


Benefits

  • Full Submersible
  • Battery Operated
  • Magnetically Coupled Drives
  • High Definition Camera
  • Hybrid Power Options
  • Durable Construction

Technical Specifications

  • Dimensions (Smallest and Largest Configuration)
  • Width:  6” (150mm) - 12.2” (310mm)
  • Height: 5.5” (140mm) - 20.6” (523mm)
  • Length:  28.2” (716mm) to 29.5” (749mm)
  • Weight (in air):  Up to 64.6 lbs (29.2 kg)
  • Materials:  Stainless Steel, Machined Aluminum, Sapphire Lens Cover Depth Rating:  50m (164’) Water Depth
  • Minimum Diameter:  8” (200mm)
  • Maximum Diameter (with Camera Head Centered):  36” (900mm) Operating Temperature:  -5°C - 40°C (23°F - 104°F)
  • Speed:  Up to 12m/min
  • Warranty:  1 Year - Parts and Labor (optional 2-3 years)
  • Sensors:  Incline, Roll, Leak, Pan/Tilt, Distance Counter
  • Transmitter: Sonde
  • Deployment:  Lift brackers on side, lift points at front and back
  • Crawler Electrical System Specifications
  • System Voltage:  19.2 VDC, LiFe 6000 mAh
  • Battery Run Time:  Up to 5 Hours
  • Hybrid Power Option Available (operate continuously)
  • Hybrid Power: 75 VDC on Tether via AC input through Automatic Reel Drives:  Magnetically Coupled, 2 x DC Gear Motors with Gear Train Steering: Skid Style
  • Pull Force:  130 lbs (580 N)
  • 2-3 Spare Ethernet Ports

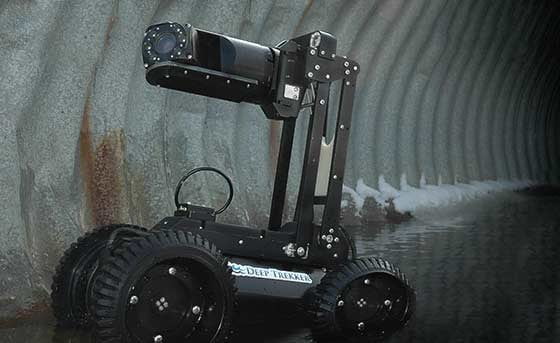

Deep Trekker DT340X Pipe Crawler Package

DT340X Pipe Crawler Package

  • DT340 Pipe Crawler with PTZ Camera Head
  • Elevating Arm
  • Auxiliary Lights
  • 1312 ft (400 m) Tether on Reel with Tether Length Counter
  • 12" Wheel Set
  • Handheld Controller
  • Carrying Cases (2)
Deep Trekker DT340S Pipe Crawler Package

DT340S Pipe Crawler Package

  • DT340 Pipe Crawler with PTZ Camera Head
  • 150m Tether on Reel with Tether Length Counter
  • Handheld Controller
  • Carrying Cases (2)
Deep Trekker DT340L Pipe Crawler Package

DT340L Pipe Crawler Package

  • DT340 Pipe Crawler with Static Camera Head
  • 150m Tether on Standard Reel
  • Handheld Controller
  • Carrying Cases (2)
Camera Add-Ons
Part No. Description
DT-10525 Lifting Hook & Rope - up to 25 ft
DT-10200 PTZ Camera - 10x optical zoom, continuous pan with LED lights
DT-10369 Fixed Zoom Camera - 10x optical zoom with LED lights
DT-10350 Tracks - bolt onto outside of wheels. Fit 14" (355mm) and up
DT-10300 Elevating Arm with Auxiliary Lights.
DT-10433-4 Carbide wheel for 8" (200 mm) pipe - four carbide grit wheels and hardware
DT-10435-4 Carbide wheel for 10" (250 mm) pipe - four carbide grit wheels and hardware
DT-10484-4 Carbide wheel kit for lined 8" (200mm) pipe - four carbide grit wheels and hardware
DT-10088-4 Wheel kit for 12" (300 mm) pipe - four rubber wheel, rim and hardware
DT-10213-4 Wheel kit for 10" (250 mm) pipe - four rubber wheel, rim and hardware
Camera Add-Ons (cont.)
Part No. Description
DT-10058-050 Increase cable length by 164 ft
DT-10058-150 Increase cable length by 492 ft
DT-10058-250 Increase cable length by 820 ft
DT-5317 Cable reel 492 ft - 1312 ft
DT-5147 Reel Carry Case
DT-10266 Cable Reel with Counter 492 - 1312 ft, requires carrying case 10093
DT-10093 Counter Reel Carry Case - required if 10266 reel is selected
DT-10384 Sonde - Powered by its own button cell batteries (x2), 33kHz, 65 ft depth
DT-5074 High Resolution Video Glasses
DT-345 DVR, 2.5" TFT Screen with SD card





WinCan Software

WinCan is a trusted provider of standards-compliant inspection software. With the Pipe Trekker™ one cable integration, the live video feed and pipe distance (DT340 S and X packages) are logged by WinCan, to then mark areas of concern and makes notes for further review.

WinCan requires a laptop for its software, opt to use your own computer or the Pipe Trekker control console.  Pipe Trekker is an authorized reseller of WinCan software, contact us today to select the best software package for your inspections.
