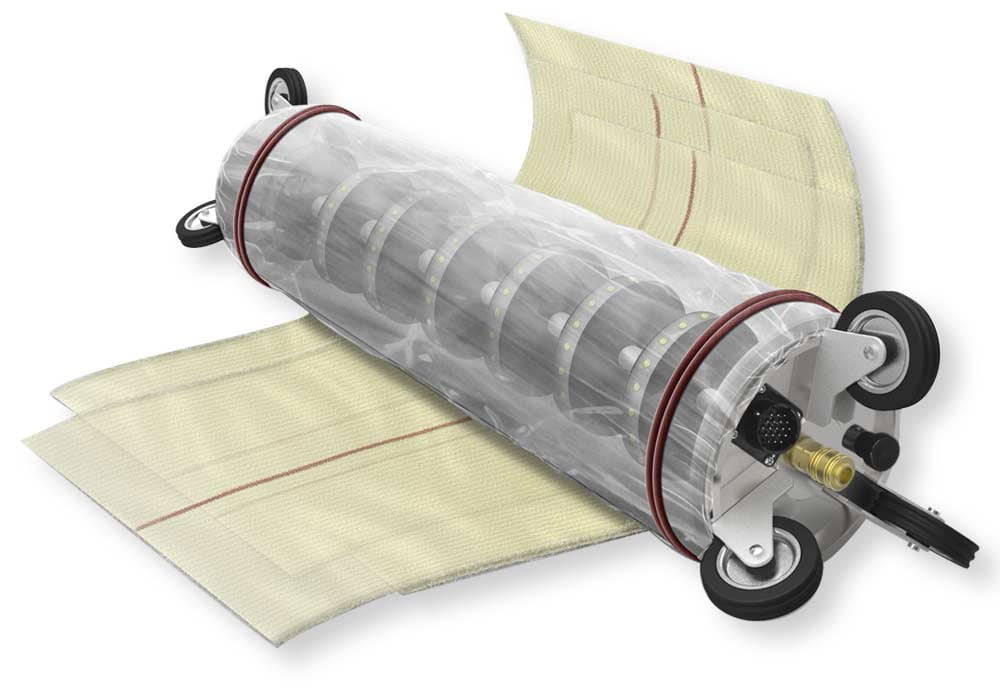

PipePatch UV Light System
PipePatch UV Light System

Technical Data

  • Trenchless point repair technology
  • 7 to 10 minute cure time
  • 6" - 12" mainline
  • Kitted system with pre-impregnated patches
  • Patented design

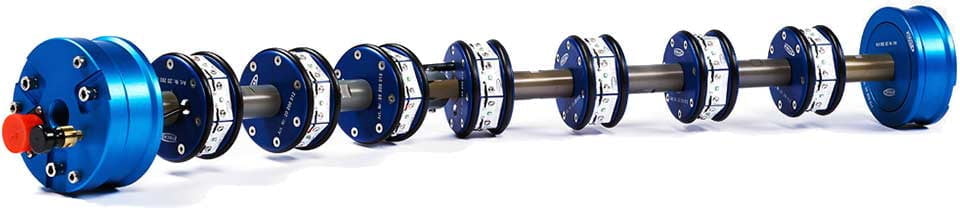

UV Light Train
UV Light Train
Part No. Description
UV-LIGHT TRAIN24 For 24" long patch repair
UV-LIGHT TRAIN48 For 48" long patch repair

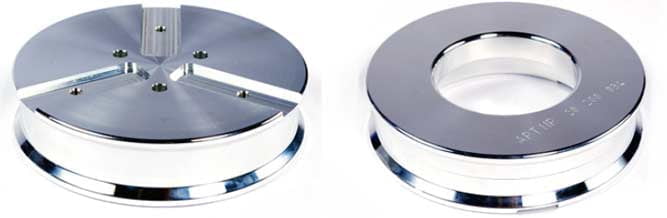

UV End Plates
UV End Plates
Part No. Description
UV-END-PLATE6-8 For 6-8" pipe diameter repairs
UV-END-PLATE10 For 10" pipe diameter repairs
UV-END-PLATE12 For 12" pipe diameter repairs
UV Pre-Impregnated Kits
UV Pre-Impregnated Kits
Part No. Description
UV-6X24 6"x24" pre-impregnated kit
UV-6X48 6"x48" pre-impregnated kit
UV-8X24 8"x24" pre-impregnated kit
UV-8X48 8"x48" pre-impregnated kit
UV-10X24 10"x24" pre-impregnated kit
UV-12X24 12"x24" pre-impregnated kit
UV Packer Bladder
UV Packer Bladder
Part No. Description
UV-PACK6-8X24 6"-8" packer bladder for 24" UV light train
UV-PACK6-8X48 6"-8" packer bladder for 48" UV light train
UV-PACK6-8X24 10" packer bladder for 24" UV light train
UV-PACK10X48 10" packer bladder for 48" UV light train
UV-PACK12X24 12" packer bladder for 24" UV light train
UV-PACK12X48 12" packer bladder for 48" UV light train

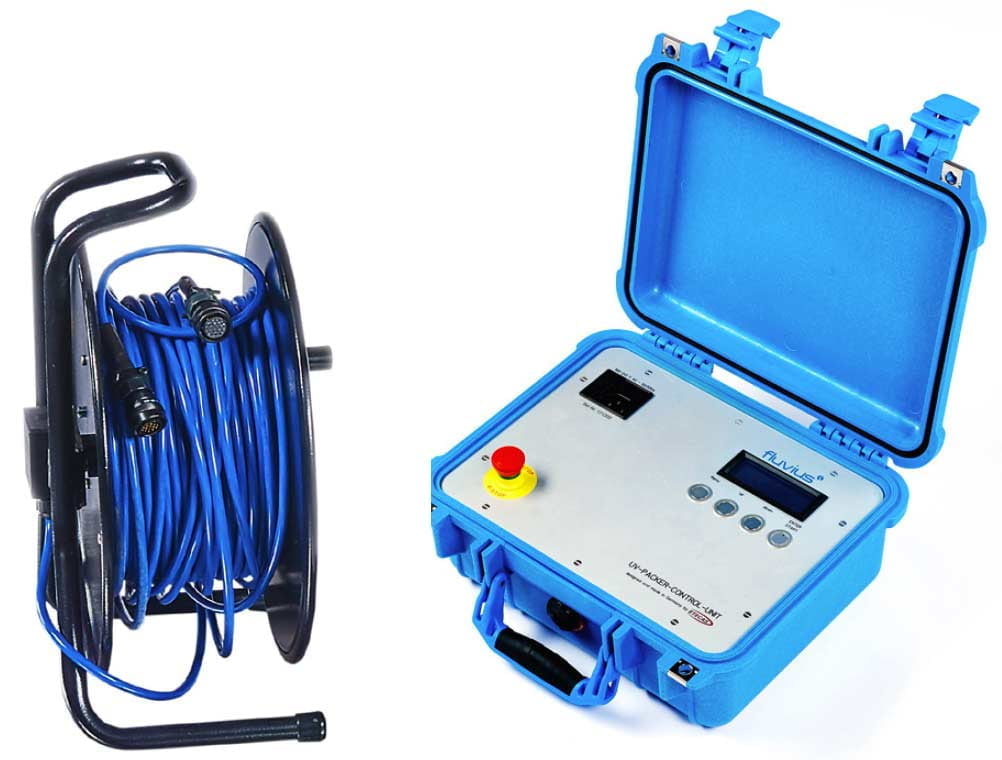

UV Equipment
UV Equipment
Part No. Description
UV-CABLE-DRUM164 164' Cable and Drum - connect UV Packer to Operating Unit
UV-CONTROL-BOX Operating unit for monitoring and light curing
UV-SPARE-WHEEL6 Spare wheel set (six total wheels) and fixing bolts
