S1E Quad-Cure® Lateral Lining Consumables & Equipment

S1E offers the Quad-Cure® lateral lining consumables and equipment for trenchless sewer rehabilitation for all lateral sized pipes. The inversion process utilizes a felt liner with an epoxy resin to provide a jointless repair, allowing installers to rehabilitate just a small portion of pipe or all unique design and lengths. Our materials can be cured with ambient temperatures, but S1E recommends hot water or steam cure. When complete, the lining system rehabilitates the entire sewer line and creates a structural barrier against exterior elements--all without the need for an excavation.

Lateral Lining Program Consumables

Features & Benefits

S1E offers various liner types:

  • 4D Liner
  • Standrad Tube
  • FlexiLiner 90
  • Scrim Reinforced
  • Non-Woven
  • Sewn In Transition

All liners are suitable for trenchless pipe relining and are able to be cured with ambient temperatures, hot water, or steam.

Quad-Cure Liner | Flexi 4D

Quad-Cure Liner | Flexi 4D

Non-woven, needle punched PE felt liner with an impermeable polyurethane coating. Diameter Range: 4" (will stretch up to 6"), larger sizes available | Performance Features: of changing circumferences up to 4 diameters (4D), navigates bends up to 90°.

Part No. Description
S1E-QC-Flexi-4D-4-330 4" x 4.5mm
S1E-QC-Flexi-4D-6-330 6" x 4.5mm

Quad-Cure Liner | Scrim Reinforced

Quad-Cure Liner | Scrim Reinforced

Non-woven, needle punched polyester fiber with a 100% continuous polyester filament scrim to limit longitudinal stretch. Polyurethane coated. Diameter Range: 3" or greater pipes | Performance Features: Excellent for long, straight shots.

Part No. Description
S1E-QC-Liner3-330 3" x 3mm ST
S1E-QC-Liner4-330 4" x 3mm ST
S1E-QC-Liner6-330 6" x 3mm ST
S1E-QC-Liner8-330 8" x 3mm ST

Quad-Cure Liner | Non-Woven

Non-woven, circular looped PE, uniquely bonded to a seamless, impermeable polyurethane coating. Diameter Range: 2"-8" | Performance Features: Extremely flexible, ideal for pipes with multiple bends, navigates bends up to 90° with minimal wrinkles.

Part No. Description
S1E-QC-NW-Liner2-330 2" x 3.5mm
S1E-QC-NW-Liner3-330 3" X 4.5mm
S1E-QC-NW-Liner4-330 4" x 4.5mm
S1E-QC-NW-Liner6-330 6" x 4.5mm
S1E-QC-NW-Liner8-330 8" x 4.5mm

Quad-Cure Liner FlexiLiner | 90

Highly flexible, single-layer liner, capable of navigating multiple bends up to 90° and transitions. Polyurethane coating. Non-woven, needle
punched PE felt, uniquely bonded to an impermeable PU coating with special stitched seam. Diameter Range: 2" pipes and larger | Performance Features: Navigates transitions and multiple bends up to 90°.

Part No. Description
S1E-QC-Flexi90-3x2-330 3" FlexiLiner - 330 ft. - 2mm
S1E-QC-Flexi90-4x2-330 4" FlexiLiner - 330 ft. - 2mm
S1E-QC-Flexi90-6x2-330 6" Flex-Liner - 330 ft. - 2mm
S1E-QC-Flexi90-4x4.5-330 4" FlexiLiner - 330 ft. - 4.5 mm
S1E-QC-Flexi90-6x4.5-330 6" FlexiLiner - 330 ft. - 4.5 mm
S1E-QC-Flexi90-8x4.5-330 8" FlexiLiner - 330 ft. - 4.5 mm

S1E Sewn Transition Liner

S1E SewnTransition Liner

S1E's Highly flexible, sewn in transition liner. 3" to 4" and 4" to 6"

Part No. Description
S1E-QC-LL3-4-3070 3" TO 4" Transition Liner. SEWN TRANSITION - 30 ft. to 70 ft. 3mm. PU coated.
S1E-QC-LL3-4-5050 3" TO 4" Transition Liner. SEWN TRANSITION - 50 ft. to 50 ft. 3mm. PU coated.
S1E-QC-LL3-4-7030 3" TO 4" Transition Liner. SEWN TRANSITION - 70 ft. to 30 ft. 3mm. PU coated.
S1E-QC-LL4-6-2080 4" TO 6" Transition Liner. SEWN TRANSITION - 20 ft. to 80 ft. 3mm. PU coated.
S1E-QC-LL4-6-5050 4" TO 6" Transition Liner. SEWN TRANSITION - 50 ft. to 50 ft. 3mm. PU coated.
S1E-QC-LL4-6-7030 4" TO 6" Transition Liner. SEWN TRANSITION - 70 ft to 30 ft. 3mm. PU coated.

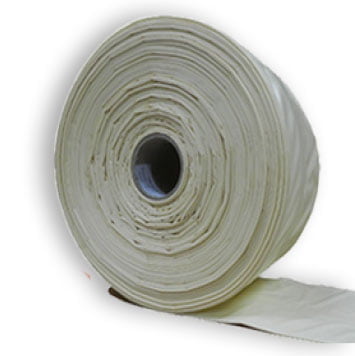

Calibration Tubes

S1E's Calibration Tube comes in a Yellow, Orange and Clear color - 328 ft. long. The product's material is a PVC-based tubular film and offers flexibility up to 90° bends. The S1E Calibration Tube is compatible with all resin and liner types.

Clear Cal Tube
Orange Cal Tube
Yellow Cal Tube
PreLiner Hose
Part No. Description
S1E-QC-Yellow2-328 2" Yellow Calibration Tube - 328 ft.
S1E-QC-Yellow4-328 4" Yellow Calibration Tube - 328 ft.
S1E-QC-Yellow6-328 6" Yellow Calibration Tube - 328 ft.
S1E-QC-Yellow8-328 8" Yellow Calibration Tube - 328 ft.
S1E-QC-Clear4-328 4" Clear Calibration Tube - 328 ft.
S1E-QC-Clear6-328 6" Clear Calibration Tube - 328 ft.
S1E-QC-Clear8-328 8" Clear Calibration Tube - 328 ft.
S1E-QC-Clear10-328 10" Clear Calibration Tube - 328 ft.
S1E-QC-Clear12-328 12" Clear Calibration Tube - 328 ft.
S1E-QC-Orange4-328 4" Orange Calibration Tube - 328ft.
S1E-QC-Orange6-328 6" Orange Calibration Tube - 328 ft.
S1E-QC-Orange8-328 8" Orange Calibration Tube - 328 ft.
S1E-QC-Orange10-328 10" Orange Calibration Tube - 328ft.
S1E-QC-PreLiner4-330 S1E 4" Pre-Liner (Roll - 330 Ft.)
S1E-QC-PreLiner6-330 S1E 5" Pre-Liner (Roll - 330 Ft.)
S1E-QC-PreLiner8-330 S1E 6" Pre-Liner (Roll - 330 Ft.)

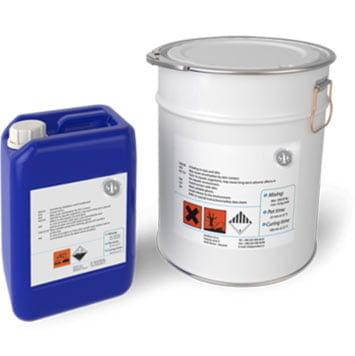

Epoxy Resins

Epoxy Resins

S1E's standard epoxy resin systems are compatible with steam, hot water and ambient cure. Ideal for relining small pipes and full length laterals, these resins offer versatility for rehabilitation applications that require a lining system. Both systems offer safe and easy handling throughout the installation. S1E offers resins with a 30-minute pot life and a 60-minute pot life.

Standard

Part No. Description Mix Ratio Pot Life Work Time
S1E-QC_4115 Epoxy 4 to 1 15 minutes 30 minutes
S1E-QC-4130 Epoxy 4 to 1 30 minutes 1 hour
S1E-QC-4160 Epoxy 4 to 1 60 minutes 2 hours
S1E-QC-3120 Epoxy 3 to 1 20 minutes 35 minutes
S1E-QC-3145 Epoxy 3 to 1 45 minutes 1 hour

Extended

Part No. Description Mix Ratio Pot Life Work Time
S1E-QC-LC8 Epoxy 2 to 1 8 hours N/A
S1E-QC-LC30 Epoxy 7 to 1 30 hours N/A

Environmental

Part No. Description Mix Ratio Pot Life Work Time
ULTRA-VIOLET:
S1E-QUAD-CURE40
Methacrylate N/A 1N/A N/A

Equipment Warranty

S1E offers the below warranty on our S1E Lining System. S1E warranties that all equipment supplied shall be free of material defect for a period of 1 year from date of purchase based on the below:

  • Issues due to misuse or applications beyond the equipment design voids the warranty. S1E requires the ability to inspect the equipment.
  • All warranty claims are limited to the equipment and do not extended to labor, installation or other expenses.
  • Equipment shall be used and maintained according to the installation manual.
  • There is no warranty for issues that result from the daily use of equipment from normal wear and tear and handling.
  • S1E is not responsible for personal injury or property damage caused by exceeding product limitations and does not provide a warranty expressed or implied for these issues.

Consumables Warranty

All materials are designed based on ASTM standards and have a 50 year design life. Because of the numerous factors that exist with installation and our underground system, S1E warranties that all materials supplied shall be free of material defect for 10 years from the date of purchase based on the below:

  • Warranty and proof of purchase must be supplied to S1E and only applies to S1E materials.
  • Consumables are installed before expiration date.
  • Consumables are installed based on industry and manufacturer standards.
  • The appearance of the final product is not covered such as wrinkles and discoloration or other non-structural deformities.
  • Warranty pertains to the replacement of materials and does not apply to labor, installation or other expenses.

No warranty for:

  • Using a combination of products that includes other manufacturer’s materials.
  • Consumables not applied correctly.
  • Wrongly mixed resins.
  • Pressure pipe.
  • Destruction of the lined pipe by others companies and/or cleaning methods are wrongly applied after installation.
  • Use of the product outside those standards for which the consumables were designed.

For any materials that fail after 10 years, the customer needs to provide an independent test results. For more information contact S1E.
