Lateral Lining System Calibration Tube

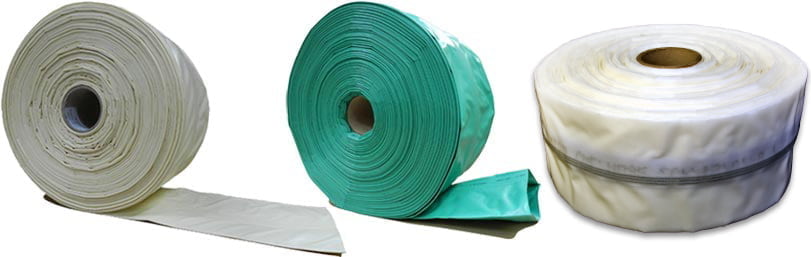

S1E's Calibration Tubes serves for the introduction of the pipe liners as a support hose into the pipe system to be repaired. The product's material is a PVC-based tubular film and offers flexibility up to 90° bends. The S1E Calibration Tube is compatible with all resin and liner types.
Other calibration tubes upon request.
Quad-Cure® Liner CalTube | HF PVC
Ultra-flexible, light duty PE fabric with PVC coating and a High Frequency welded overlap seam. Color: Yellow | Diameter Range: 2"-6" | Performance Features: For use in Open-End liner (Blind-Shot) and Pull-In-Place applications.
| Part No. | Description |
|---|---|
| QC CALHF-020-100-02-03 | 2" Yellow Calibration Tube |
| QC CALHF-030-100-02-03 | 3" Yellow Calibration Tube |
| QC CALHF-040-100-02-03 | 4" Yellow Calibration Tube |
| QC CALHF-050-100-02-03 | 5" Yellow Calibration Tube |
| QC CALHF-060-100-02-03 | 6" Yellow Calibration Tube |
Quad-Cure® Liner CalTube | Stitched
Flexible tube designed to provide excellent resistance against tearing and higher temperature resistance for heat-cured installation. Color: Clear | Diameter Range: 4" and greater diameter pipes | Performance Features: For use in Open-End liner (Blind-Shot) and Pull-In-Place applications.
| Part No. | Description |
|---|---|
| QC CALSC-040-100-02-01 | 2" Yellow Calibration Tube |
| QC CALSC-050-100-02-01 | 4" Yellow Calibration Tube |
| QC CALSC-060-100-02-01 | 6" Yellow Calibration Tube |
| QC CALSC-080-100-02-01 | 8" Yellow Calibration Tube |
| QC CALSC-100-100-02-01 | 10" Clear Calibration Tube |
| QC CALSC-120-100-02-01 | 12" Clear Calibration Tube |
Quad-Cure® Liner CalTube | Stitched
Flexible tube designed for excellent tear and higher temperature resistance, for heat-cured installation. Color: Orange | Diameter Range: 4" and greater | Performance Features: For use in Open-End liner (Blind-Shot) and Pull-In-Place applications.
| Part No. | Description |
|---|---|
| QC CALSO-040-100-02-01 | 4" Orange Calibration Tube |
| QC CALSO-050-100-02-01 | 5" Orange Calibration Tube |
| QC CALSO-060-100-02-01 | 6" Orange Calibration Tube |
| QC CALSO-080-100-02-01 | 8" Orange Calibration Tube |
| QC CALSO-100-100-02-01 | 10" Orange Calibration Tube |
| QC CALSO-120-100-02-01 | 12" Orange Calibration Tube |
Quad-Cure® Liner | PreLiner Hose
3-ply laminate tube combining two layers of linear LDPE and a high strength cord grid. Color: Clear | Diameter Range: 4" and greater | Performance Features: Specially engineered to provide high strength and durability in a lightweight material.
| Part No. | Description |
|---|---|
| QC PRELN-040-100-00-05 | S1E 4" Pre-Liner |
| QC PRELN-050-100-00-05 | S1E 5" Pre-Liner |
| QC PRELN-060-100-00-05 | S1E 6" Pre-Liner |
| QC PRELN-080-100-00-05 | S1E 8" Pre-Liner |
