S1E Lateral Lining System

Lateral Lining System

Lateral Lining System Wet Out Table

Source One Environmental's aluminmum built portable Wet Out Table designed with multiple forms of operation via roller or power drill.

Lateral Lining Wet Out Table
Lateral Lining Wet Out Table
Lateral Lining Wet Out Table

Features

  • Light weight design
    Heavy duty aluminum construction.
  • Portable
    Easy to carry and operate.

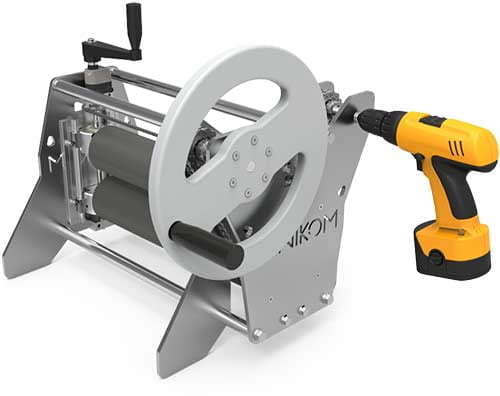

  • Multi operational capabilities
    Can easily be adjusted by manual roller or power drill.

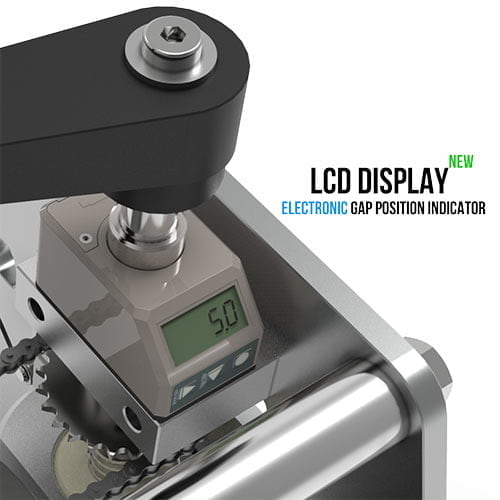

  • Digital accuracy
    LCD Display electronic gap position indicator

Technical Details

Part No. & Description Total Weight
S1E-WETOUT9M - 9" Roller 57 lbs
S1E-WETOUT9E - Electric Driven 9" Wetout Table 234 lbs
S1E-WETOUT15E - Electric Driven 14" Wetout Table 278 lbs
Lateral Lining Wet Out Table

Technical Drawings





Manual Roller - SANITABLE 300

SANITABLE 300 - Lateral Lining Wet Out Table

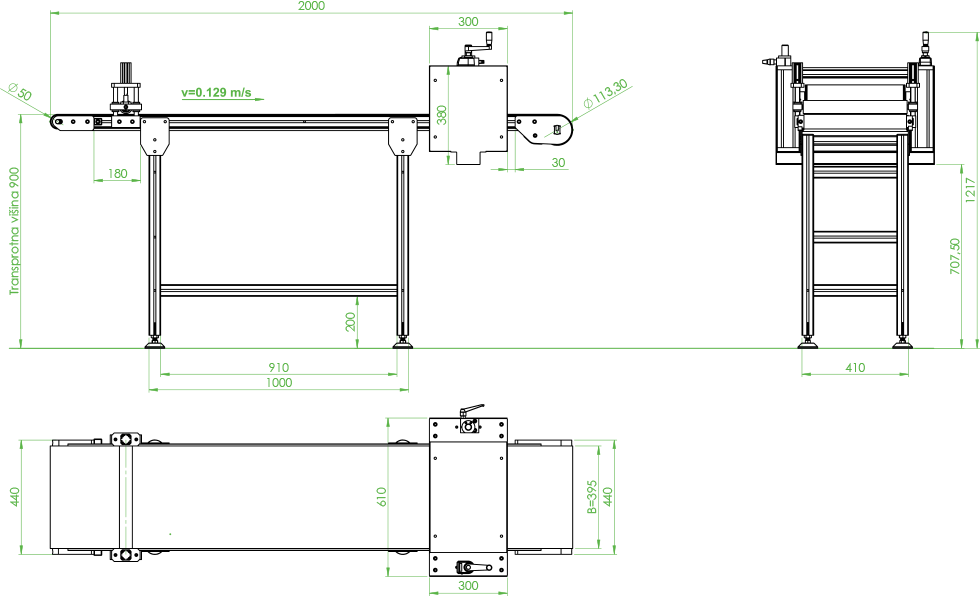

ELECTRICAL IMPREGNATION TABLE - SANITABLE 225

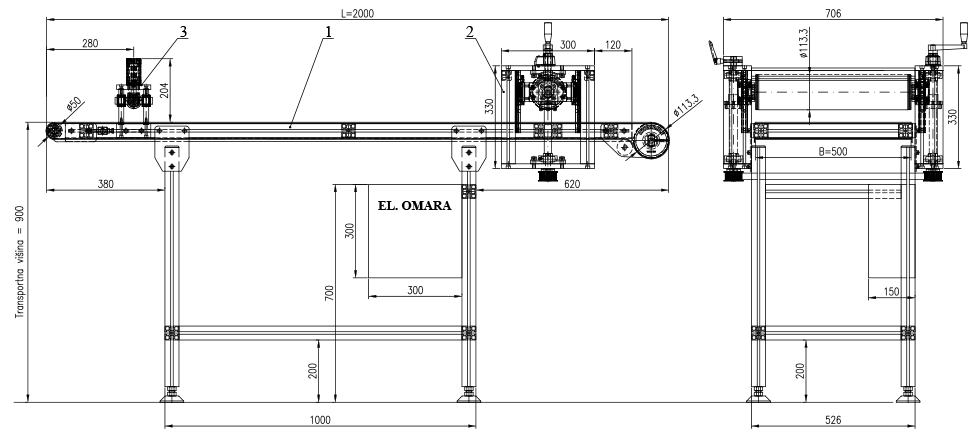

ELECTRICAL IMPREGNATION TABLE - SANITABLE 300
