S1E Lateral Lining System

Lateral Lining

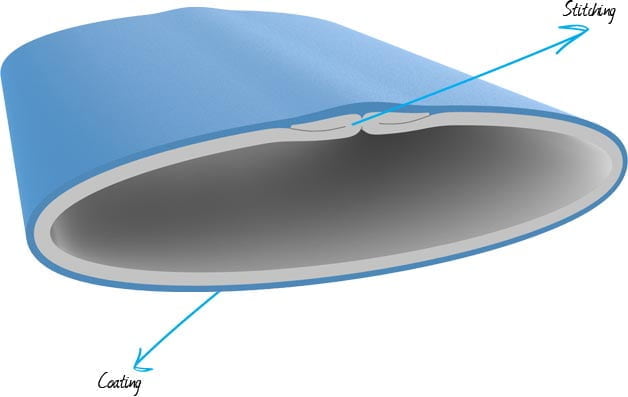

Lateral Lining System Liner Types

S1E's Liners come in a wide variety of features to accomodate as many application as possible; excellent for long, straight, 45° and 90° shots. Various types of liners are available depending on requirements and field of application. Special sizes and lengths of liners are available upon request.

Quad-Cure Liner | Standard Tube
Quad-Cure Liner | 45
Quad-Cure Liner | Flexi 4D
Quad-Cure Liner | Scrim Reinforced

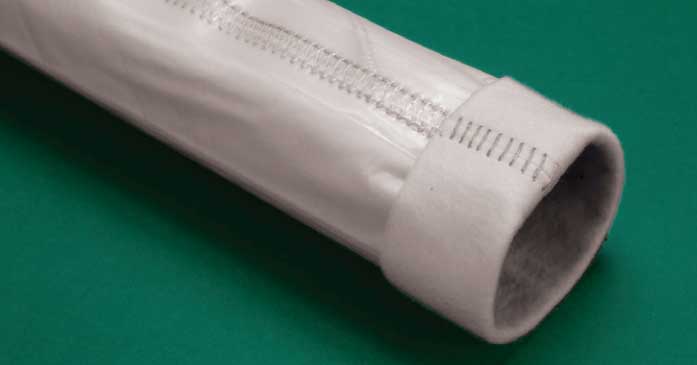

Quad-Cure Liner | Standard Tube

Quad-Cure Liner | Standard Tube

Non-woven, needle punched polyester fiber capable of navigating sweeping bends. Diameter Range: 3" and greater diameter pipes | Performance Features: Best for open-ended (blind shots), navigates sweeping bends up to 90°.

Part No. Description
S1E-QC-Standard4-330 4" x 3mm
S1E-QC-Standard4x4.5-330 4" x 4.5mm
S1E-QC-Standard6-330 6" x 3mm
S1E-QC-Standard6x4.5-330 6" x 4.5mm

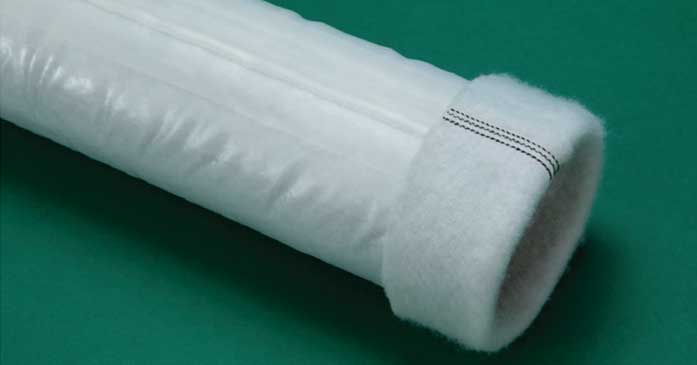

Quad-Cure Liner | 45

Quad-Cure Liner | 45

Non-woven needle punched PE felt liner with impermeable PVC coating. Diameter Range: 3"-6" | Performance Features: 35% extension for 45° bends.

Part No. Description
S1E-QC-Flexi45-4x3-330 4" x 3mm
S1E-QC-Flexi45-6x3-330 6" x 3mm

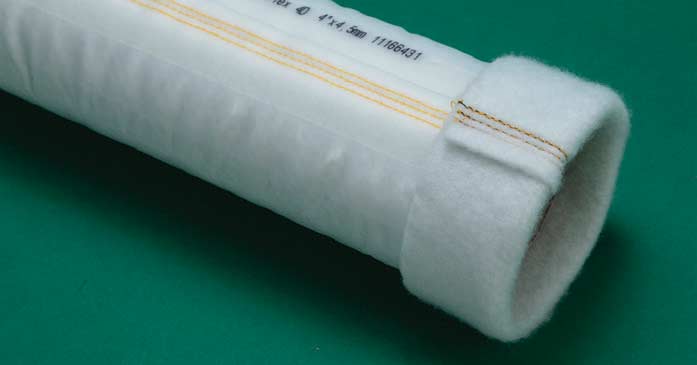

Quad-Cure Liner | Flexi 4D

Quad-Cure Liner | Flexi 4D

Non-woven, needle punched PE felt liner with an impermeable polyurethane coating. Diameter Range: 4" (will stretch up to 6"), larger sizes available | Performance Features: of changing circumferences up to 4 diameters (4D), navigates bends up to 90°.

Part No. Description
S1E-QC-Flexi-4D-4-330 4" x 4.5mm
S1E-QC-Flexi-4D-6-330 6" x 4.5mm

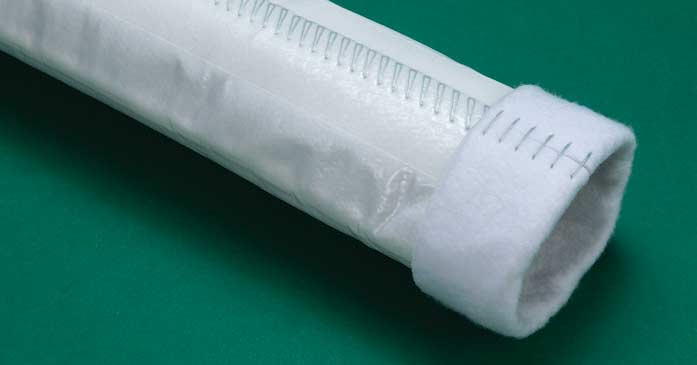

Quad-Cure Liner | Scrim Reinforced

Quad-Cure Liner | Scrim Reinforced

Non-woven, needle punched polyester fiber with a 100% continuous polyester filament scrim to limit longitudinal stretch. Polyurethane coated. Diameter Range: 3" or greater pipes | Performance Features: Excellent for long, straight shots.

Part No. Description
S1E-QC-Liner3-330 3" x 3mm ST
S1E-QC-Liner4-330 4" x 3mm ST
S1E-QC-Liner6-330 6" x 3mm ST
S1E-QC-Liner8-330 8" x 3mm ST

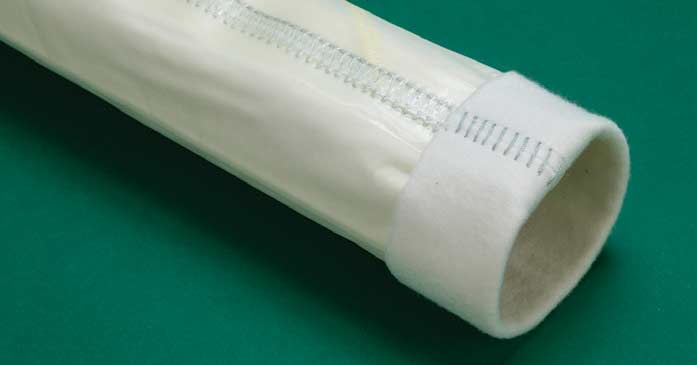

Quad-Cure Liner FlexiLiner | 90

Highly flexible, single-layer liner, capable of navigating multiple bends up to 90° and transitions. Polyurethane coating. Non-woven, needle
punched PE felt, uniquely bonded to an impermeable PU coating with special stitched seam. Diameter Range: 2" pipes and larger | Performance Features: Navigates transitions and multiple bends up to 90°.

Part No. Description
S1E-QC-Flexi90-3x2-330 3" FlexiLiner - 330 ft. - 2mm
S1E-QC-Flexi90-4x2-330 4" FlexiLiner - 330 ft. - 2mm
S1E-QC-Flexi90-6x2-330 6" Flex-Liner - 330 ft. - 2mm
S1E-QC-Flexi90-4x4.5-330 4" FlexiLiner - 330 ft. - 4.5 mm
S1E-QC-Flexi90-6x4.5-330 6" FlexiLiner - 330 ft. - 4.5 mm
S1E-QC-Flexi90-8x4.5-330 8" FlexiLiner - 330 ft. - 4.5 mm

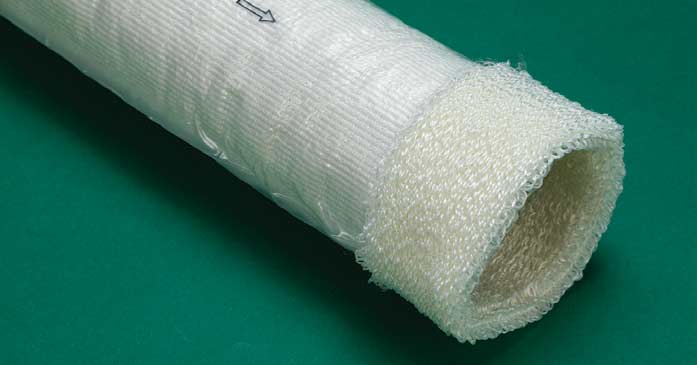

Quad-Cure Liner | Non-Woven

Non-woven, circular looped PE, uniquely bonded to a seamless, impermeable polyurethane coating. Diameter Range: 2"-8" | Performance Features: Extremely flexible, ideal for pipes with multiple bends, navigates bends up to 90° with minimal wrinkles.

Part No. Description
S1E-QC-NW-Liner2-330 2" x 3.5mm
S1E-QC-NW-Liner3-330 3" X 4.5mm
S1E-QC-NW-Liner4-330 4" x 4.5mm
S1E-QC-NW-Liner6-330 6" x 4.5mm
S1E-QC-NW-Liner8-330 8" x 4.5mm

S1E Sewn Transition Liner

S1E SewnTransition Liner

S1E's Highly flexible, sewn in transition liner. 3" to 4" and 4" to 6"

Part No. Description
S1E-QC-LL3-4-3070 3" TO 4" Transition Liner. SEWN TRANSITION - 30 ft. to 70 ft. 3mm. PU coated.
S1E-QC-LL3-4-5050 3" TO 4" Transition Liner. SEWN TRANSITION - 50 ft. to 50 ft. 3mm. PU coated.
S1E-QC-LL3-4-7030 3" TO 4" Transition Liner. SEWN TRANSITION - 70 ft. to 30 ft. 3mm. PU coated.
S1E-QC-LL4-6-2080 4" TO 6" Transition Liner. SEWN TRANSITION - 20 ft. to 80 ft. 3mm. PU coated.
S1E-QC-LL4-6-5050 4" TO 6" Transition Liner. SEWN TRANSITION - 50 ft. to 50 ft. 3mm. PU coated.
S1E-QC-LL4-6-7030 4" TO 6" Transition Liner. SEWN TRANSITION - 70 ft to 30 ft. 3mm. PU coated.
