HD Packer Designed for entry into smaller pipe with excellent manoeuvrability.

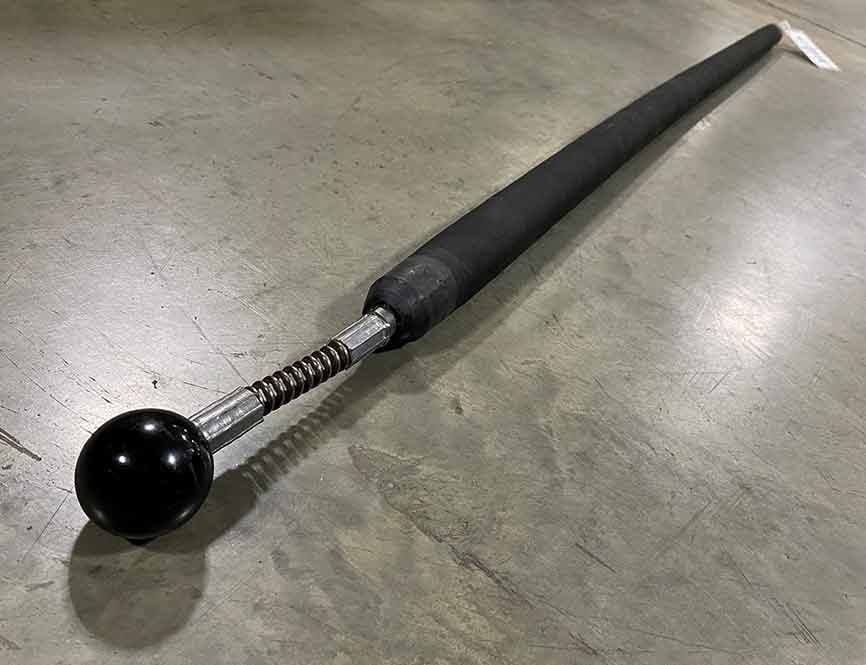

Designed for entry into smaller pipe with excellent maneuverability. Special spring mounted, “Navigation Ball", to aid in passing through 45° and 90° elbows

Applications

  • Standard 3" through 6" Lateral PipePatch Installations
  • Access through 3" Cleanouts in order to install 4" or 6" diameter PipePatch
  • Can be used to install 3" to 4" and 4" to 6" Transitions
HD Packer – PipePatch

Additional info

  • Removable eye-bolt pull cable connection installed in the packer’s nose.
  • A fixed pull cable connection is located at the tail.
  • Undersized 1.65-inch diameter rubber nose and tail to allow for easy packer removal after patch installation.
  • HD packers have no stiffening inner core, it may be necessary to add a few psi of pressure

Part Numbers & Specifications

  • FPP-PACK3-6-HD (3-6 inch x 24 inch lateral repairs) Packer Dimensions: 1.65" OD x 59" Length
  • FPP-PACK3-6x48-HD (3-6 inch x 48 inch lateral repairs) Packer Dimensions: 1.65" OD x 79" Length
  • Maximum Inflation Pressure: 72 psi. (5 bar)
  • Best to determine the appropriate pack-out pressure in an appropriate sized test pipe prior to patch installation. A minimum of 36 psi is recommended for the FPP-PACK3-6-HD & 3-6x48-HD
