Inspection Technology

Buy Now

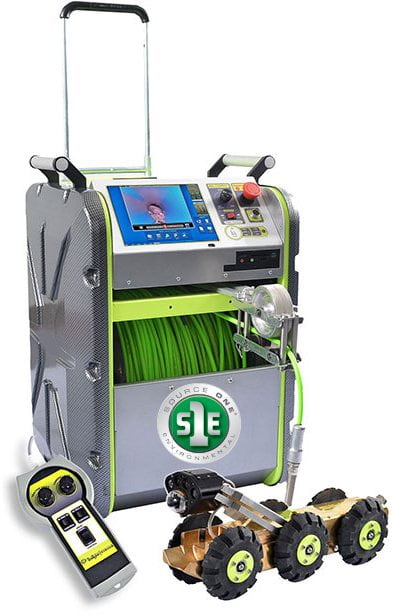

Portable Crawler System Integrated Remote Inspection System

The S1E Portable Crawler System is an advanced and portable sewer video inspection system. This all-in-one system incorporates a motorized crawler, power rewind and feed assist cable drum. Utilizing a pan and tilt camera, the crawler has 360° rotation and 180° pan. Standard inspections range from 6" to 12" diameter and up to 18" with additional wheel set. With the S1E Portable Mainline Crawler, your business will have professional video results to ensure accuracy and efficiency in the field.

Part No. Iris Pan & Tilt Description
I-S1ECrawler S1E Crawler System Camera
I-Touchscreen Camera 10” LCD Touchscreen
I-Sonde-C 512hz camera transmitter
I-Locator Locator with case
I-HandControl Pan & tilt hand controller
I-Faceplate Faceplate kit
Portable Crawler System

Features & Benefits

  • Compact and transportable
  • 10" user-friendly touch screen
  • Motorized reel design for quick rewind
  • 600' flexible coax cable
  • Window IOS operation
  • Pan & tilt camera to view different pipe angles
  • Inspects 6" – 12" pipe
  • Four high intensity LEDs
  • Multiple recording format
  • Additional wheel set for larger pipe inspection
  • 360° lateral lighting
